OpenIndiana Installation walkthrough - Part 4

This is Part 4 of a series of posts explaining how to configure OpenIndiana as NAS storage device. The series is made up of the following parts:

  • Background information about OpenIndiana and OS installation
  • Network configuration and Setting up storage
  • Presenting storage to your Hosts with iSCSI and/or NFS
  • Performance testing

    Today we will go into the performance I was able to get out of the OpenIndiana appliance that I have installed.

    But first a small bit of detail around the hardware setup this is actually running on.

    This a lab – therefore the setup is not optimal.

    I am using an HP DC7800 PC for an ESXi imagehost. The PC can hold 4 SATA devices and up to 8GB of RAM.
    I also have 2 hard disks in the Host – 1 Western Digital Caviar Blue WD2500AAKS 250GB 7200 RPM 16MB Cache SATA 3.0Gb/s 3.5" where I have ESX installed and use as a local storage, and also 1 Intel® Solid-State Drive 520 Series – 180GB. And on this drive I have installed OpenIndiana.




    The setup was identical to the walkthrough from the previous stages, with some exceptions.

    The VM has 10 VMDK’s attached to it – each 15GB in size and they are all connected to a separate SCSI adapter (SCSI1).


    I then created a RAIDZ1 volume of all of these disks and presented this as both NFS and iSCSI storage.

    root@nas1:~# zpool list -v
    NAME          SIZE  ALLOC   FREE  EXPANDSZ    CAP  DEDUP  HEALTH  ALTROOT
    disk1         146G  66.1G  79.9G         -    45%  1.00x  ONLINE  -
      raidz1      146G  66.1G  79.9G         -
        c4t0d0       -      -      -         -
        c4t1d0       -      -      -         -
        c4t2d0       -      -      -         -
        c4t3d0       -      -      -         -
        c4t4d0       -      -      -         -
        c4t5d0       -      -      -         -
        c4t6d0       -      -      -         -
        c4t8d0       -      -      -         -
        c4t9d0       -      -      -         -
        c4t10d0      -      -      -         -

    root@nas1:~# zfs list
    NAME                       USED  AVAIL  REFER  MOUNTPOINT
    disk1                      103G  25.1G  51.9K  /disk1
    disk1/iscsi_1              103G  69.4G  58.8G  -
    disk1/nfs_1                317M  25.1G   317M  /disk1/nfs_1
    rpool                     6.30G  5.45G  45.5K  /rpool
    rpool/ROOT                3.20G  5.45G    31K  legacy
    rpool/ROOT/openindiana    10.6M  5.45G  1.95G  /
    rpool/ROOT/openindiana-1   816M  5.45G  1.87G  /
    rpool/ROOT/openindiana-2  2.39G  5.45G  1.96G  /
    rpool/dump                1.50G  5.45G  1.50G  -

    OpenIndiana has 3 NICs (eth0-2) where eth1 & eth2 are used for iSCSI traffic and eth2 is used for NFS traffic (the reason being I wanted to check the multipathing options)

    The Openindiana VM was configured with two configurations. 2GB RAM and 4GB RAM. The test I performed was Max IOPs (512b block 0% Random – 100% Read) from VMware’s I/O Analyzer 1.1.

    The tests were done on:

  • Native SSD (not through OpenIndiana)
  • iSCSI LUN
  • NFS mount

    And here are the results


    Native SSD


    Maximum IOPs 9,364.23 with ~2.6 ms latency




    msaidelk-esx2-vmhba0-iopsmsaidelk-esx2-vmhba0-latencymsaidelk-esx2-vmhba0-throughput


    NFS

    Maximum IOPs 9,364.23 with ~2.6 ms latency

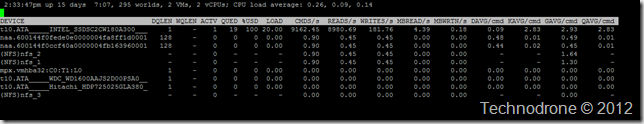

    The interesting thing you may notice here about the last graphic – is that the NFS disk is actually pushing a large amount of IO requests but the underlying physical disk is actually not really working very hard.image

    Memory\Kernel MBytes913
    Memory\NonKernel MBytes2461
    Group Cpu(416665:nas2)\% Used64.2
    Network Port(vSwitch2:50331656:vmk3)\MBits Received/sec85.5

    iSCSI

    Maximum IOPs 14,331 with ~1.3 ms latency




    msaidelk-esx2-vmhba0-iopsmsaidelk-esx2-vmhba0-latencymsaidelk-esx2-vmhba0-throughputmsaidelk-esx2-vmhba33-iopsmsaidelk-esx2-vmhba33-latencymsaidelk-esx2-vmhba33-throughput

    Again note the actual IO to the SSD


    The numbers are quite impressive as you can see.

    What I learned from this:

    1. NFS/iSCSI performance was very much the same – besides the fact the NFS put a much higher load on the OpenIndiana server than iSCSI did (something like 60 times more CPU usage!)
    2. The performance achieved through OpenIndiana was higher than native disk – due to the fact that OpenIndiana makes use of RAM as a caching mechanism.

    My apologies for the delay in the last part of this series.
