OpenIndiana Installation walkthrough - Part 3

This is Part 3 of a series of posts explaining how to configure OpenIndiana as NAS storage device. The series is made up of the following parts:
  1. Background information about OpenIndiana and OS installation
  2. Network configuration and Setting up storage
  3. Presenting storage to your hosts with iSCSI and/or NFS
  4. Performance testing
At the end of Part 2 we had the network set up, VMware Tools installed, additional disk space added to the VM, and a zpool created.
What we will go through in this part is:
  1. Configuring NFS and iSCSI services
  2. Creating a Volume for iSCSI
  3. Create an NFS folder
  4. Create a LUN and share it with an iSCSI
  5. Export NFS Volume and set export parameters
  6. Mount NFS and iSCSI storage
So first we need to turn on the iSCSI and NFS services. NFS is just to start a service, iSCSI has a bit more to it.
svcadm enable -r iscsi/target:default
svcadm enable network/nfs/status

enable iscsi and nfs

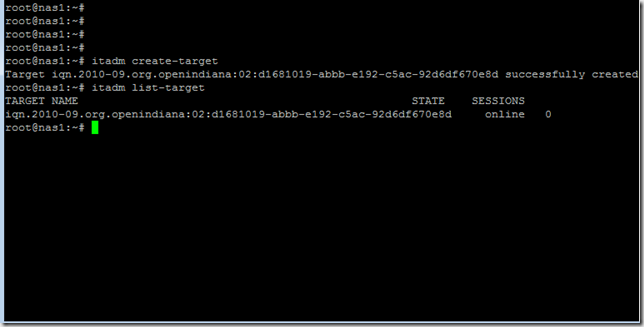

Now we create the target with
itadm create-target
You can check the status with
itadm list-target
create target
Create the volume and the NFS folder (I will create a small 2GB Volume) and then query for status

zfs create -V 2G disk1/iscsi_1
zfs create disk1/nfs_1

create volumes
zfs list
list volumes
Here you can see disk1 is 5GB (USED+AVAIL), disk1/iscsi_1 is 2GB is size (thin provisioned) and the disk1/nfs_1 has 3GB space left in total

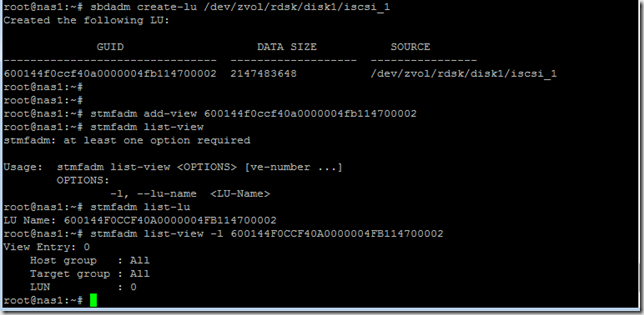

Now we create the iSCSI LUN with
sbdadm create-lu /dev/zvol/rdsk/disk1/iscsi_1

and add it to the masking of the iSCSI initiator with the GUID that was just created
stmfadm add-view 600144f0ccf40a0000004fb114700002
Just to check that all is set correctly list the LUNs
stmfadm list-lu

List the masking
stmfadm list-view -l 600144F0CCF40A0000004FB114700002

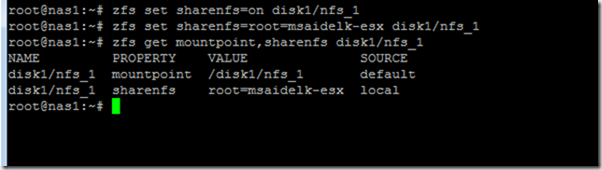

One last thin left to do is to set the NFS export permissions with the following (you will need either the FQDN of the host or the correct IP for the export permissions)
zfs set sharenfs=on disk1/nfs_1
zfs set sharenfs=root=msaidelk-esx.maishsk.local disk1/nfs_1
zfs get mountpoint,sharenfs disk1/nfs_1

NFS shares
And that is it – the storage configuration is complete.
Now we go over to the ESX and mount the storage.
First the iSCSI volume

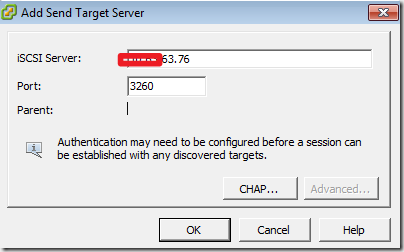

Add target
After a rescan of the adapter I now have a new 2GB LUN
On to NFS.
We now have a new NFS storage mount
There you have it a fully working storage appliance on OpenIndiana.
In Part 4 I will show some Performance statistics I am getting out of this VM.
